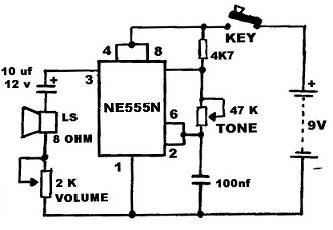

If you want to learn the Morse code, you can use one of the most common circuits:















It is made with a usual NE555N bistabil IC. There are two adjustment possibilities: You can modify the signal amplification and also the signal frequency (tone). Instead of the 8W speaker you can use some Headphones. You just have to adjust the impendancy with a 1:1 separation transformator.

You can also download plany programms for your PC on internet.
REVIEWS


web page maker screenshot
"If the presence of electricity can be made visible in any part of the circuit, I see no reason why intelligence may not be transmitted instantaneously by electricity. "
Samuel Morse
QTH

51?34'51.31" N
07?04'09.12"O


Gelsenkirchen, Germany.
Operator Cristian Mutascu



Create your own web pages in minutes...
YO2LTY
Copyright crissmuty. All Rights Reserved.
HOME
A   .-
N   -.
0   -----
B   -...
O   ---
1   .----
C   -.-.
P   .--.
2   ..---
D   -..
Q   --.-
3   ...--
E   .
R   .-.
4   ....-
F   ..-.
S   ...
5   .....
G   --.
T   -
6   -....
H   ....
U   ..-
7   --...
I   ..
V   ...-
8   ---..
J   .---
W   .--
9   ----.
K   -.-
X   -..-
Fullstop   .-.-.-
L   .-..
Y   -.--
Comma   --..--
M   --
Z   --..
Query   ..--..
The Alpha-nummerical
Morse Code:
